Enable Duo MFA (2FA) for EBS

Overview

This guide walks you through configuring Duo Multi-Factor Authentication (MFA/2FA) for Oracle E-Business Suite (EBS).

Prerequisite

Before proceeding, ensure you have the following:

• A Duo Admin with the Owner role to enable the feature
• A Datawiza Cloud Management Console (DCMC) account

Part I: Duo Configuration

Step 1: Sign in to Duo Admin Panel

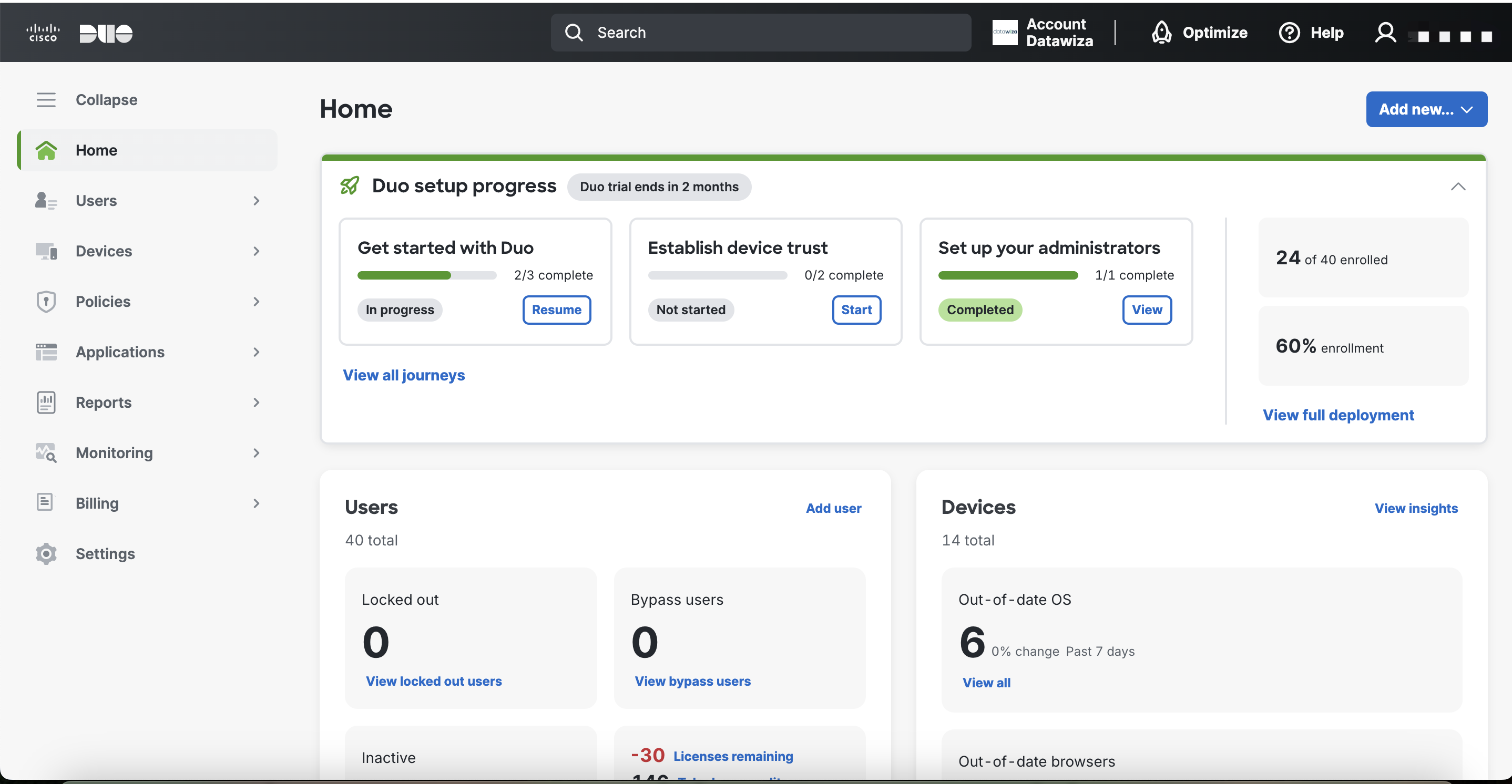

1. Log into the Duo Admin Panel

Step 2: Protect a New Web SDK Application

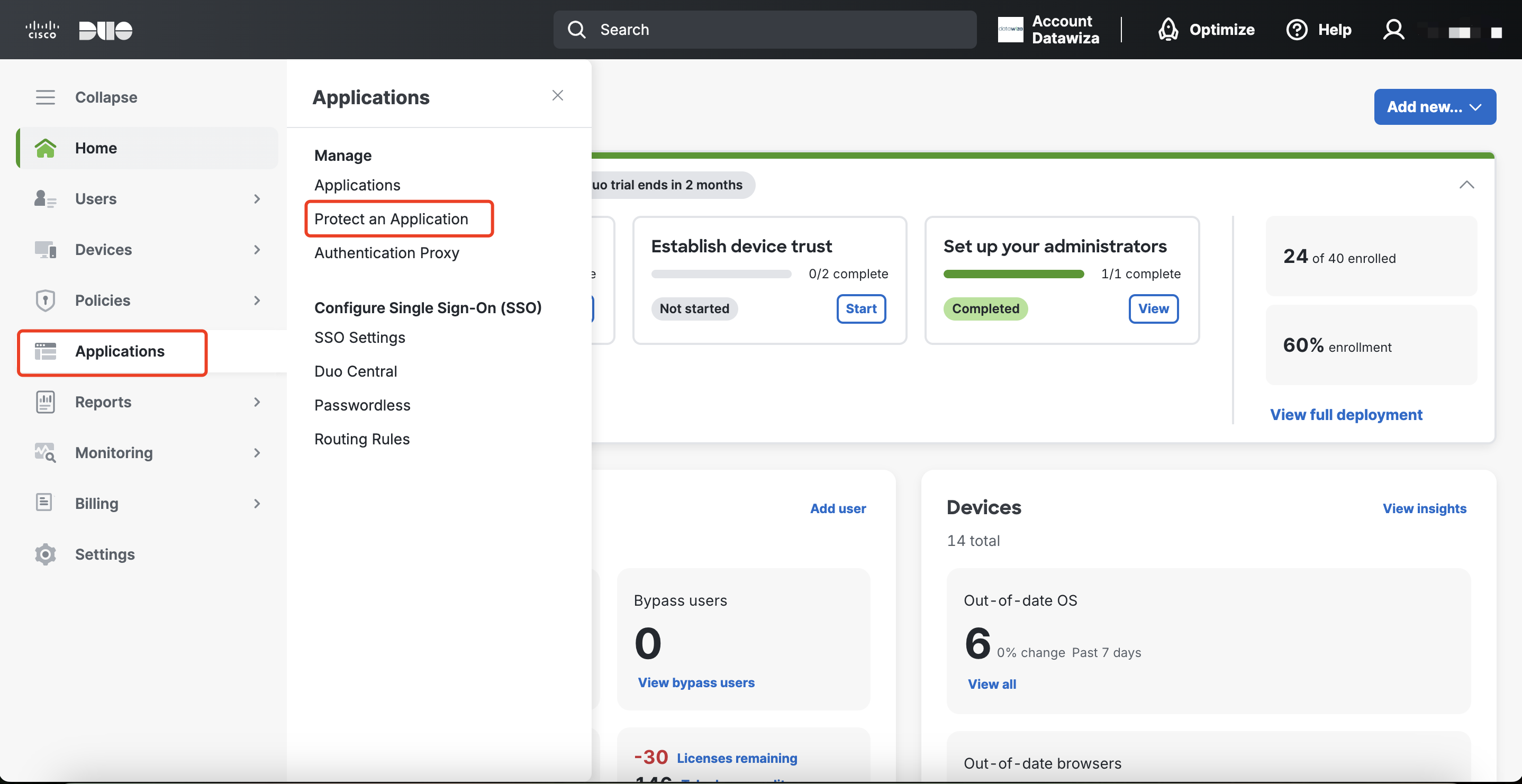

1. Navigate to the Applications tab.

2. Click Protect An Application.

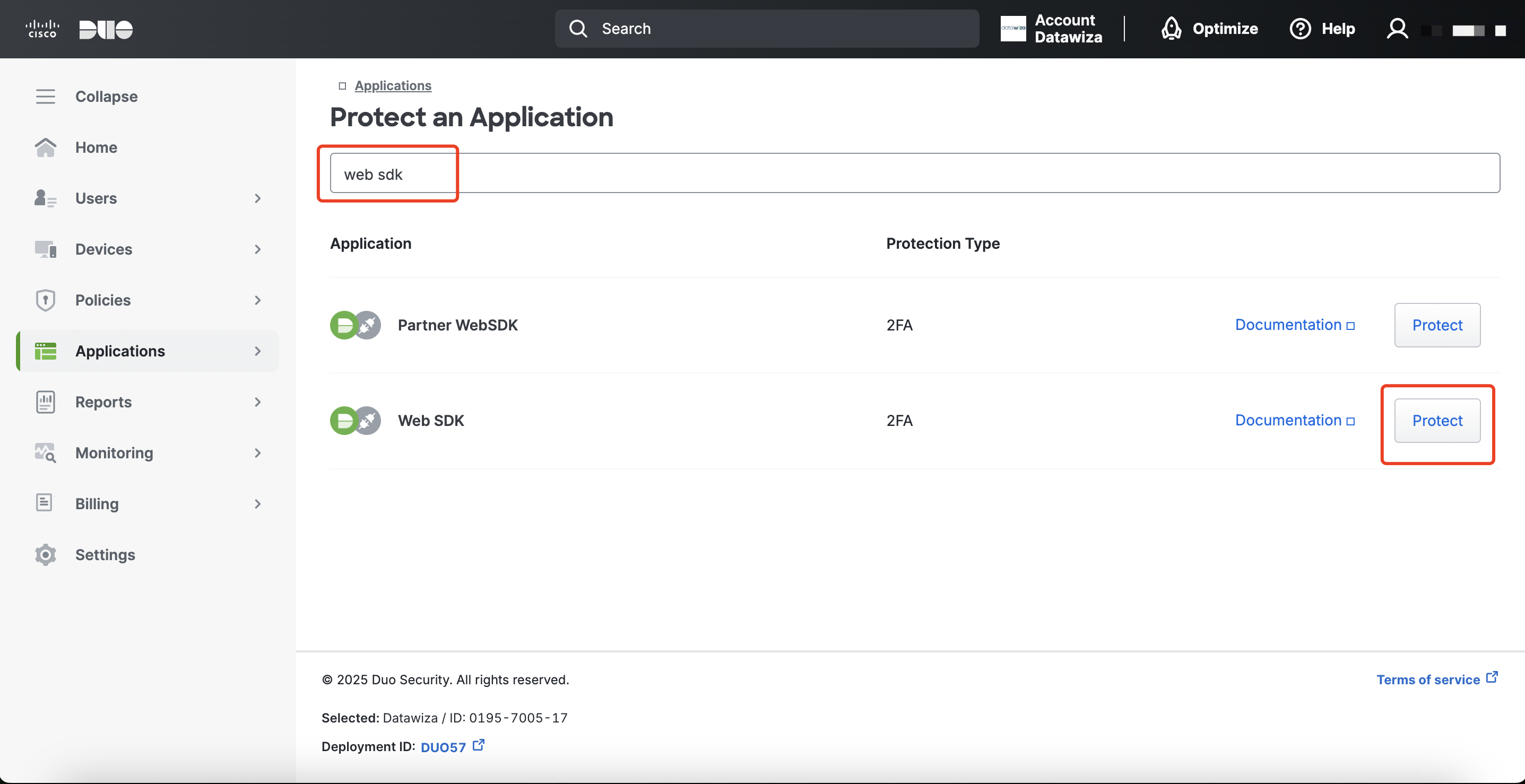

3. Search for Web SDK, then click Protect:

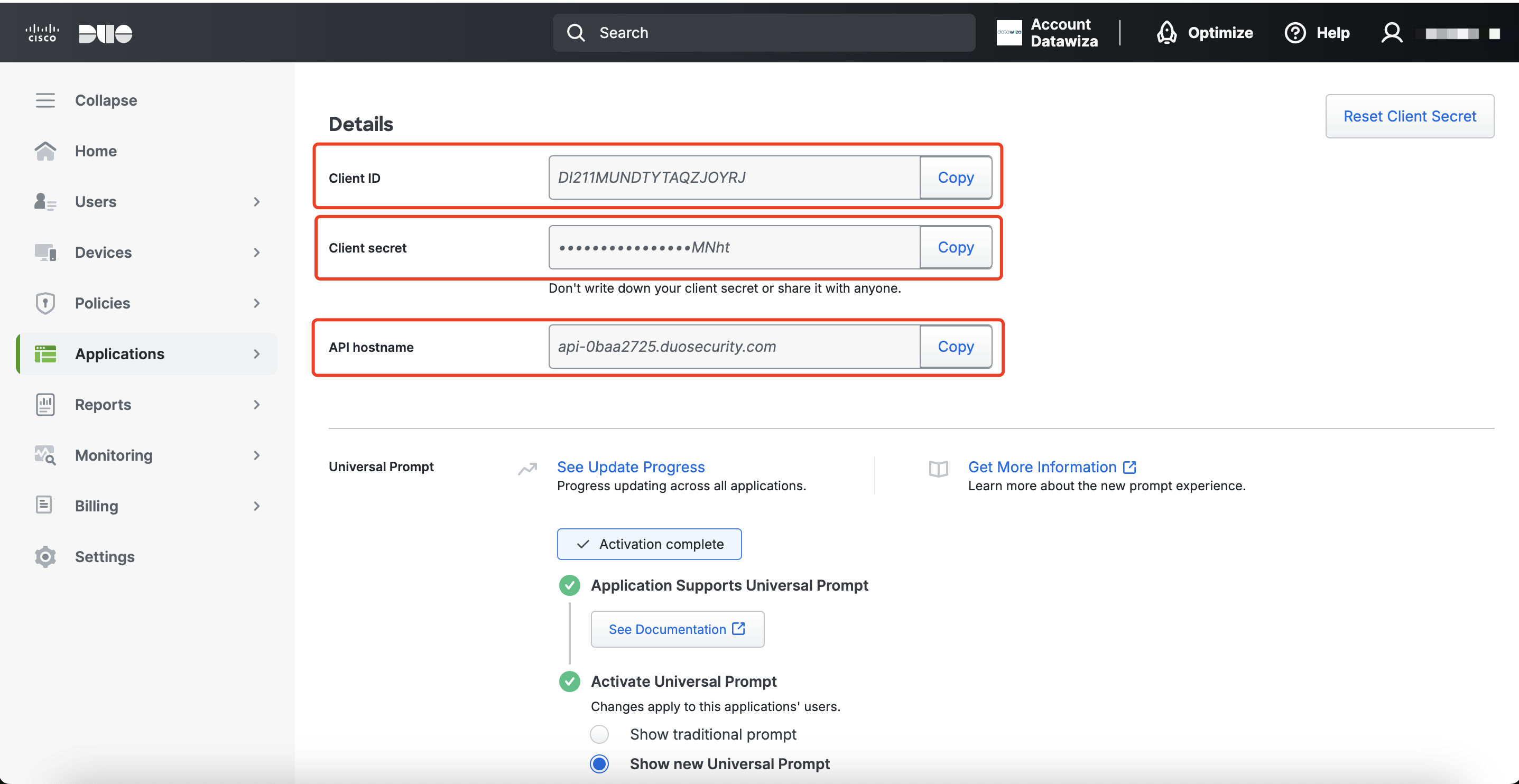

4. Note the following values for later use: Client ID, Client secret， and API hostname.

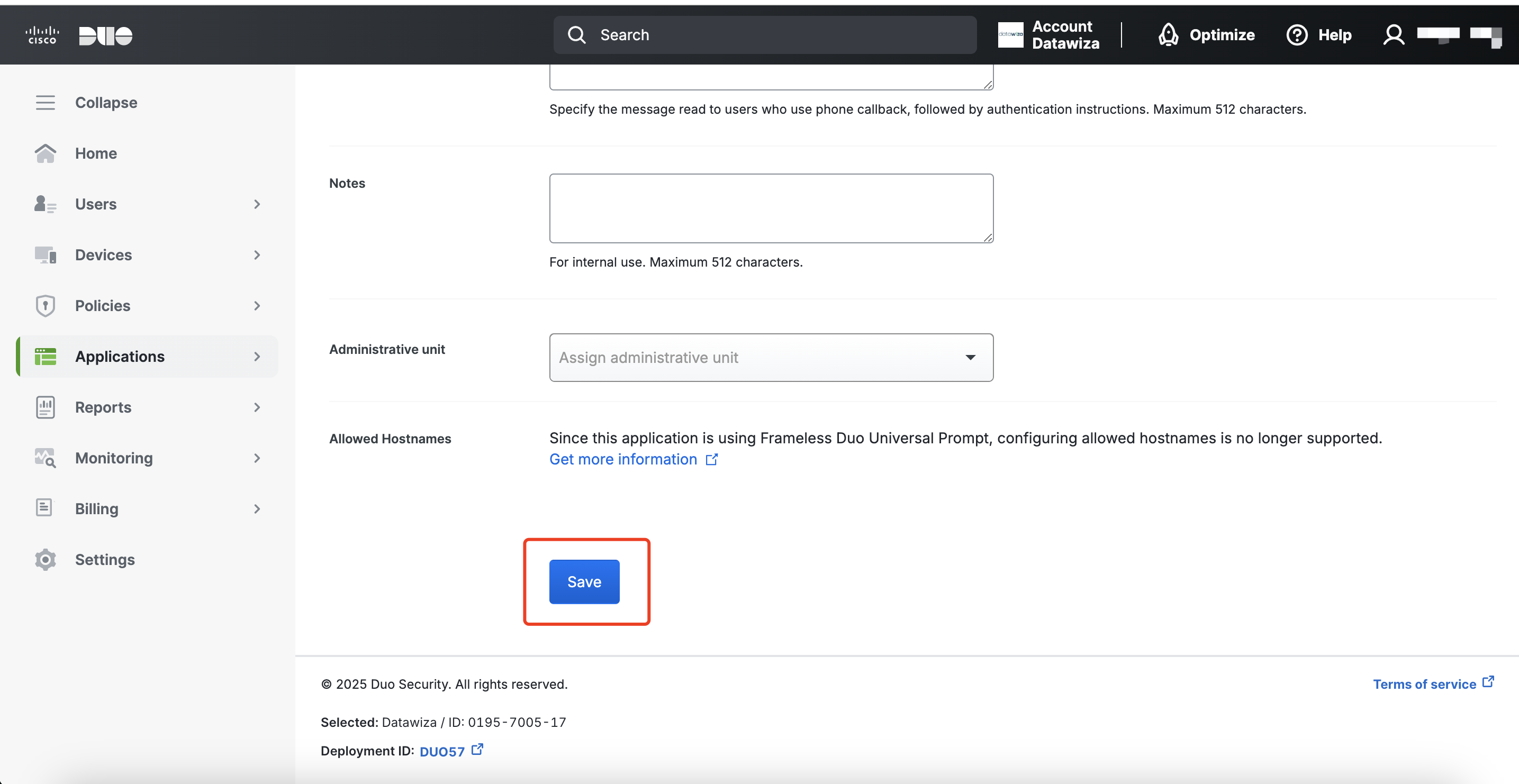

5. Click Save:

Part II: Datawiza Cloud Management Console (DCMC) Configuration

Step 1: Sign in to DCMC

1. Log into the DCMC.

Step 2: Create a New Deployment

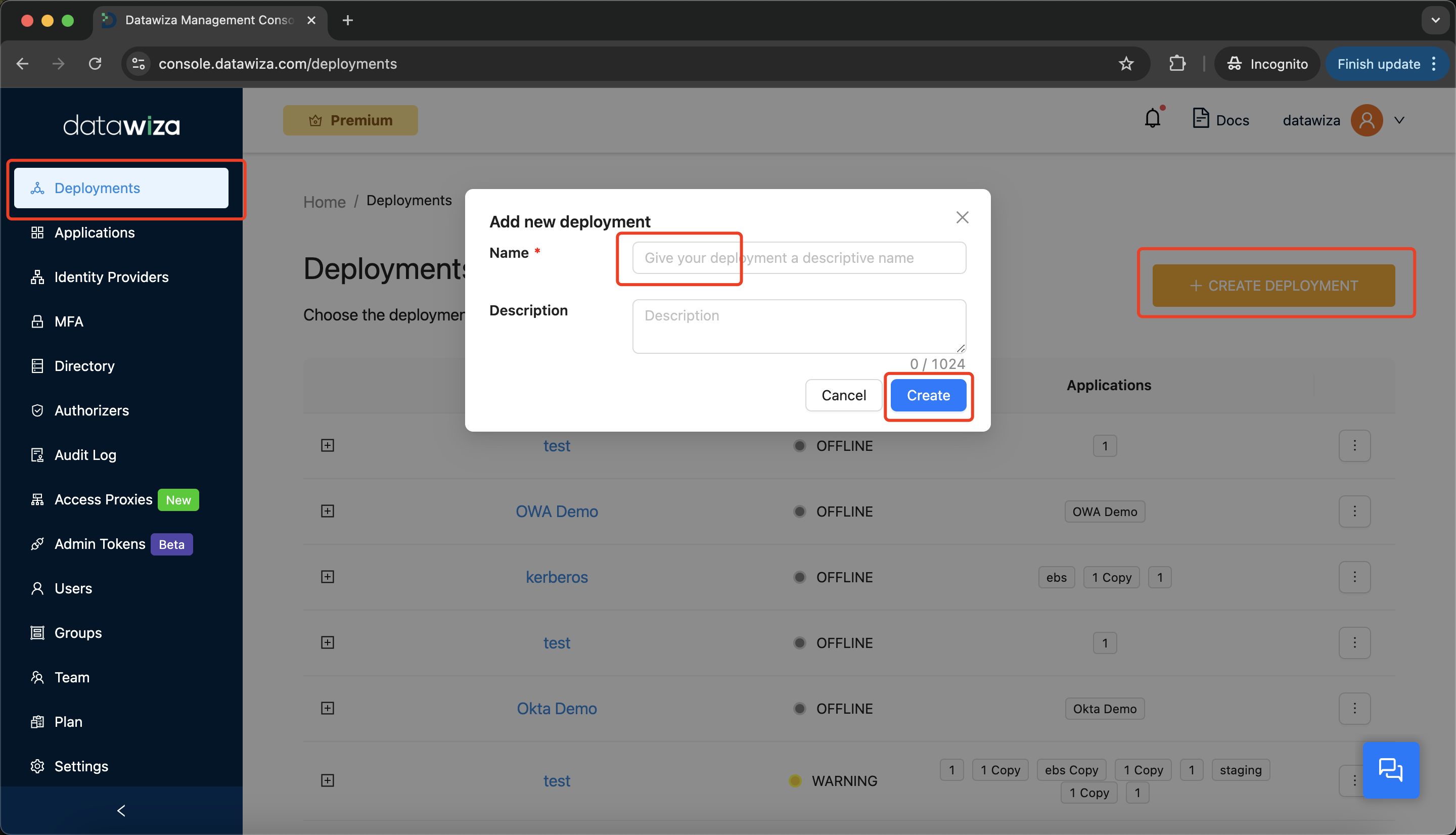

1. Navigate to the Deployments tab.
2. Click + CREATE DEPLOYMENT.
3. Enter a Name and Description, then click Create.

Step 3: Add a New Application

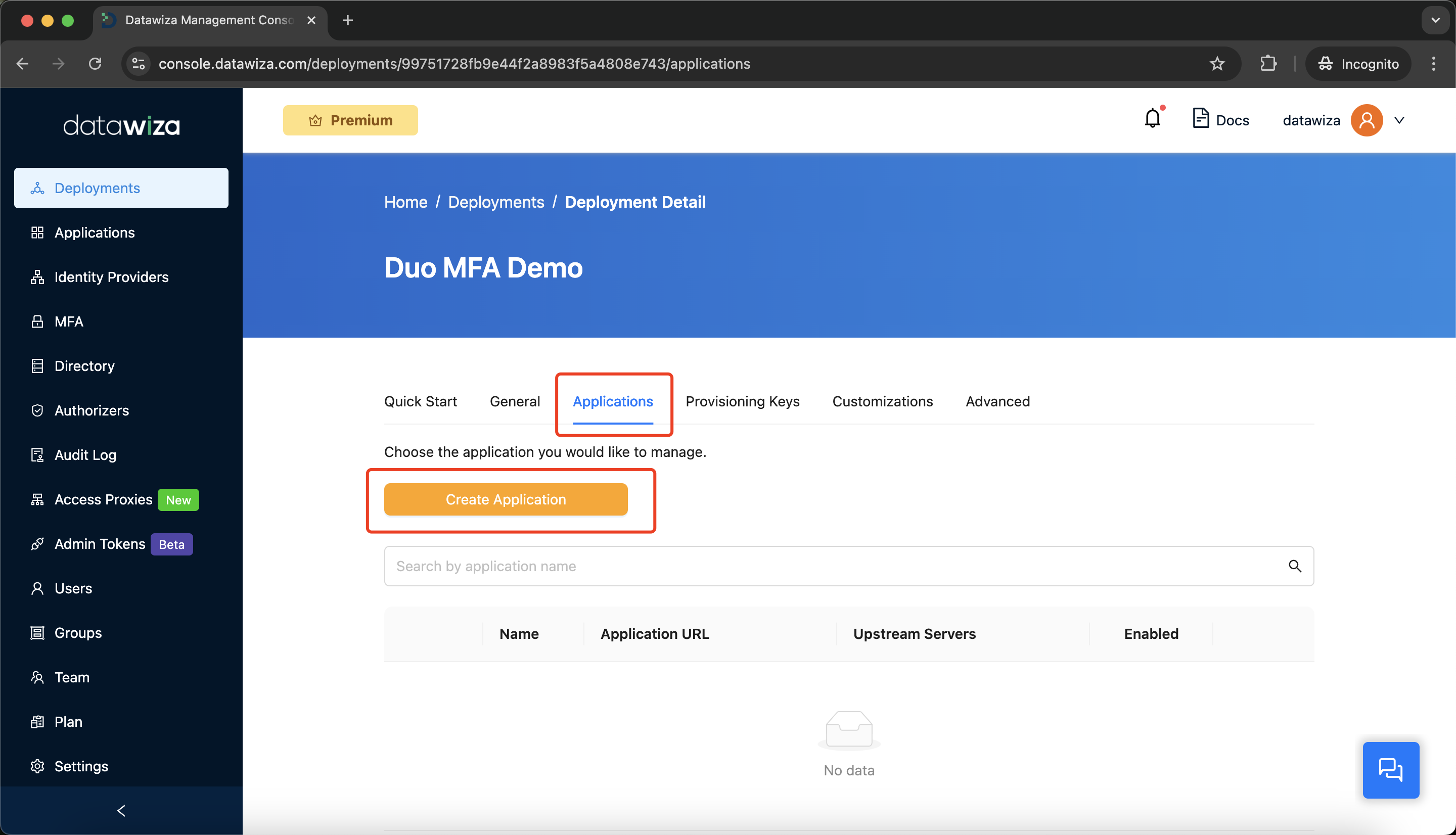

1. Go to the Applications tab and click Create Application.

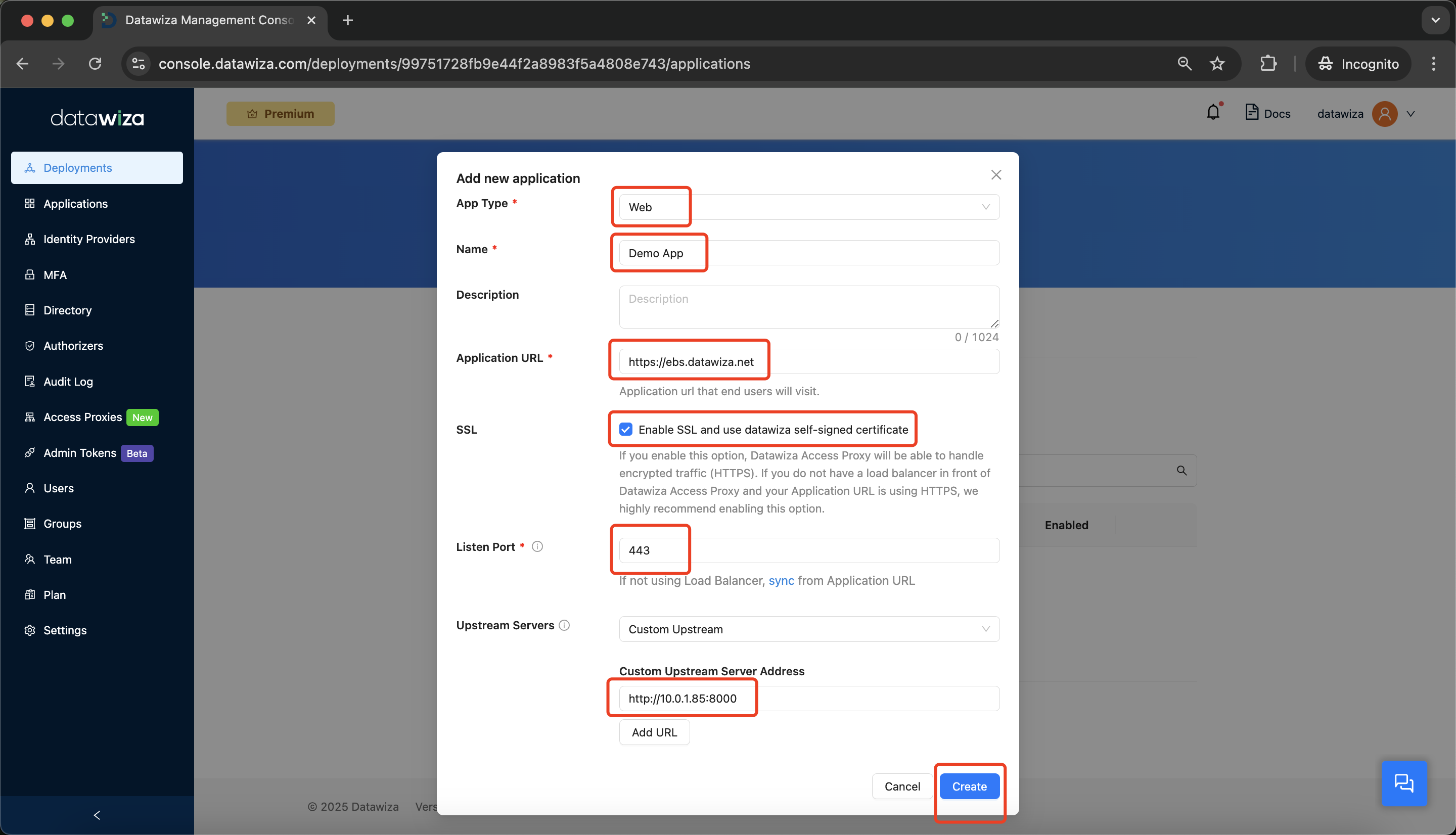

Configure your application with the following values:

• App Type: WEB.
• Name: Demo App.
• Application URL: https://ebs.datawiza.net (replace with your own DNS name). This DNS name should match the Site Value setting in your EBS, on the Define Profile Values: Application Authenticate Agent page. The DNS name (e.g., ebs.datawiza.net) should resolve to the IP address of the Datawiza Access Proxy (DAP), or to the IP address of the load balancer or reverse proxy that sits in front of the DAP.
• SSL: Enable SSL and use datawiza self-signed certificate.
• Listen Port: 443.
• Upstream Servers: Custom Upstream.
• Custom Upstream Server Address: http://10.0.1.85:8000 (replace with the actual IP address or hostname of your EBS web server).
• Click Next.

Step 4: Update Access Rules

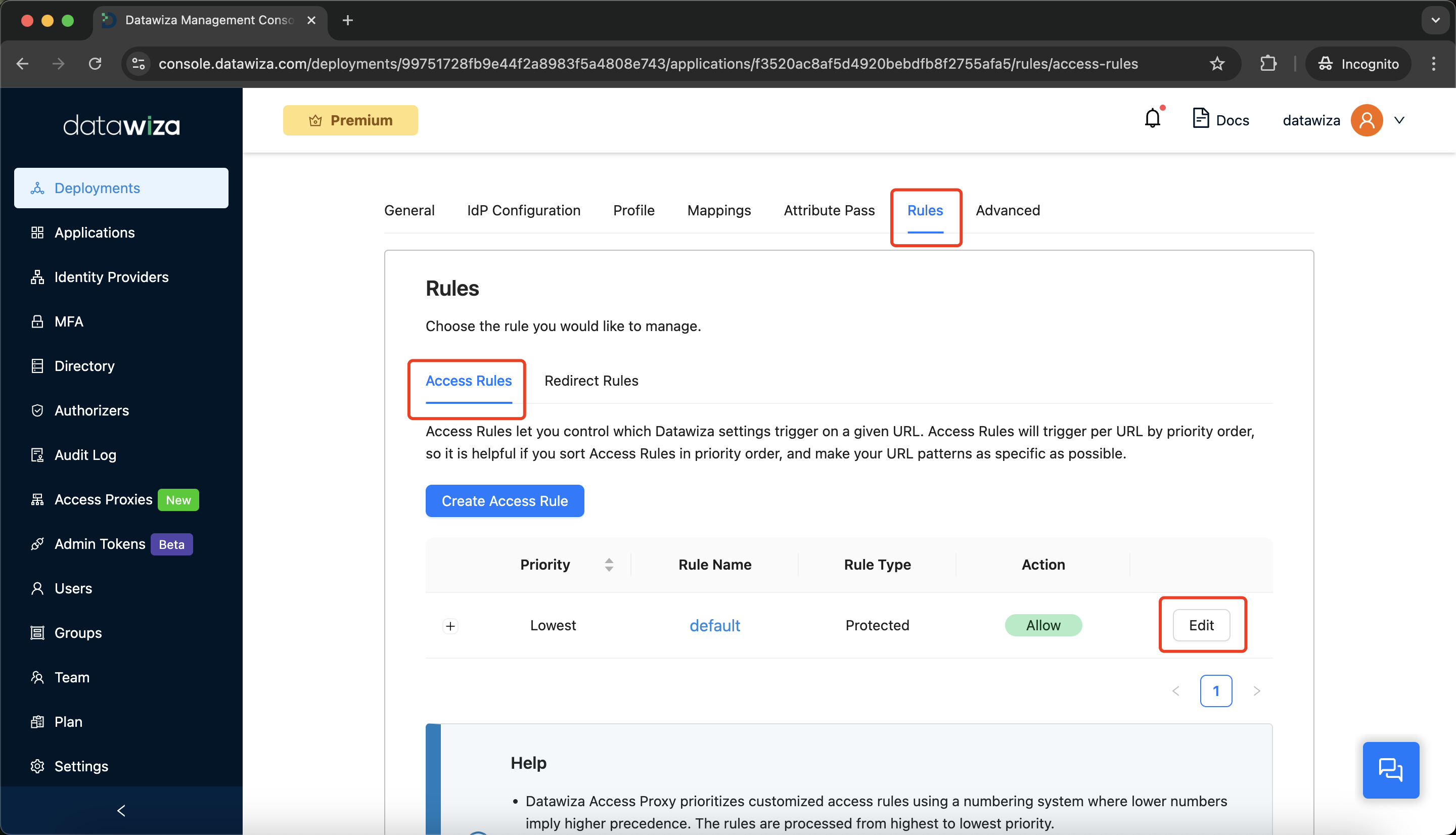

1. Go to the Rules tab.

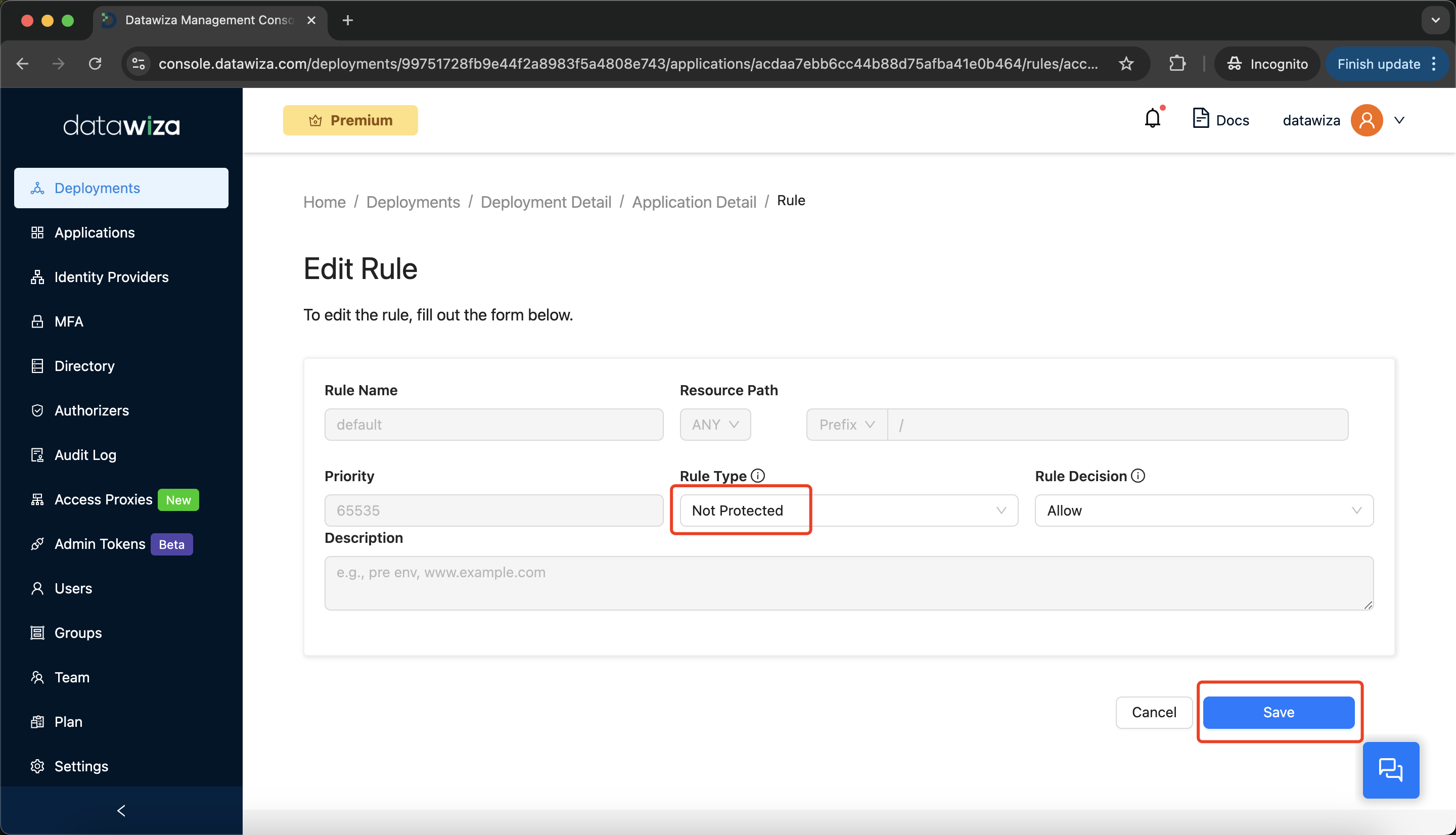

2. Edit the default access rule and set the Rule Type to Not Protected.

Step 5: Enable Datawiza MFA

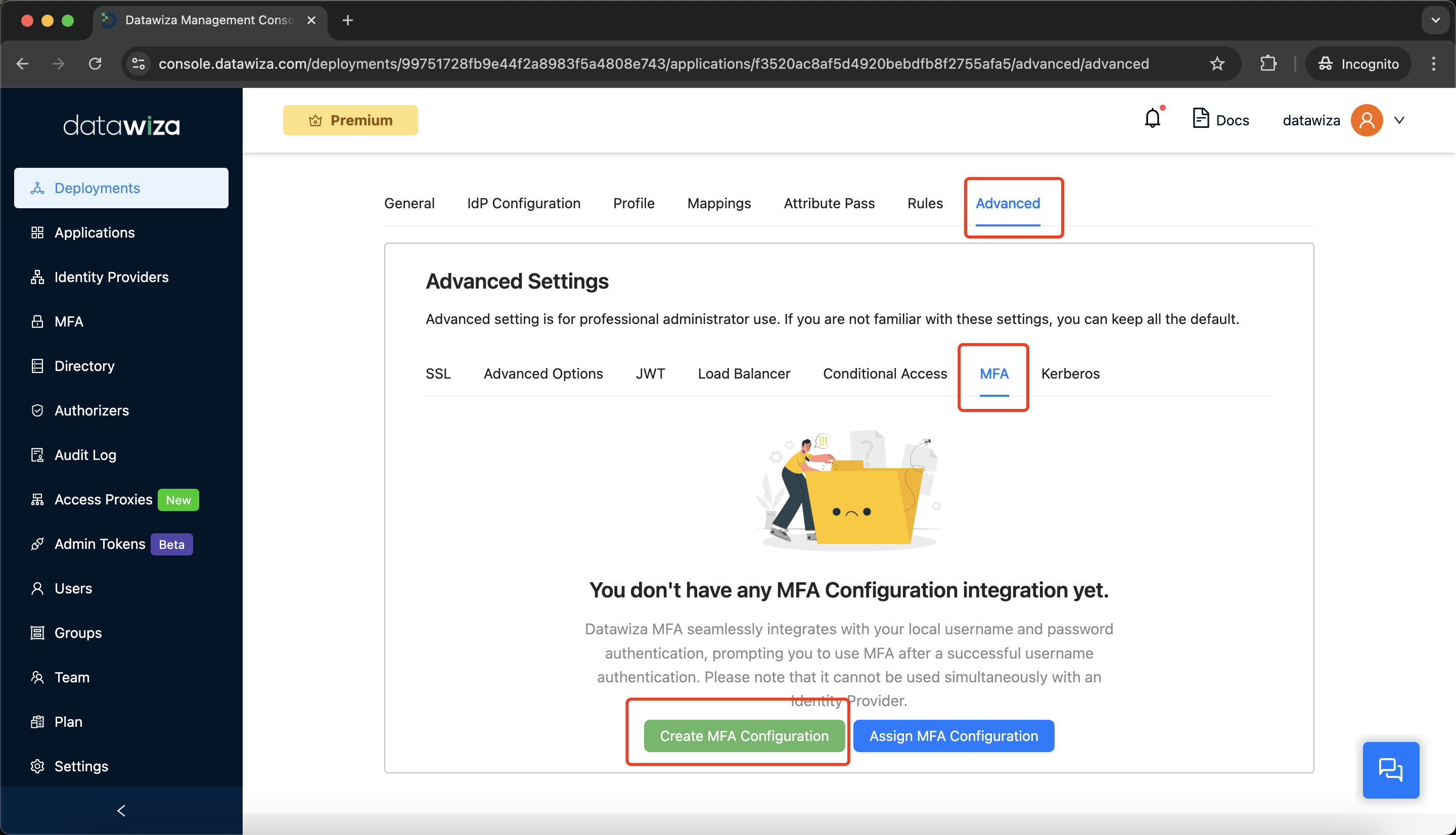

1. Navigate to the Advanced tab.
2. Under Advanced Settings, select MFA, then click Create MFA Configuration.

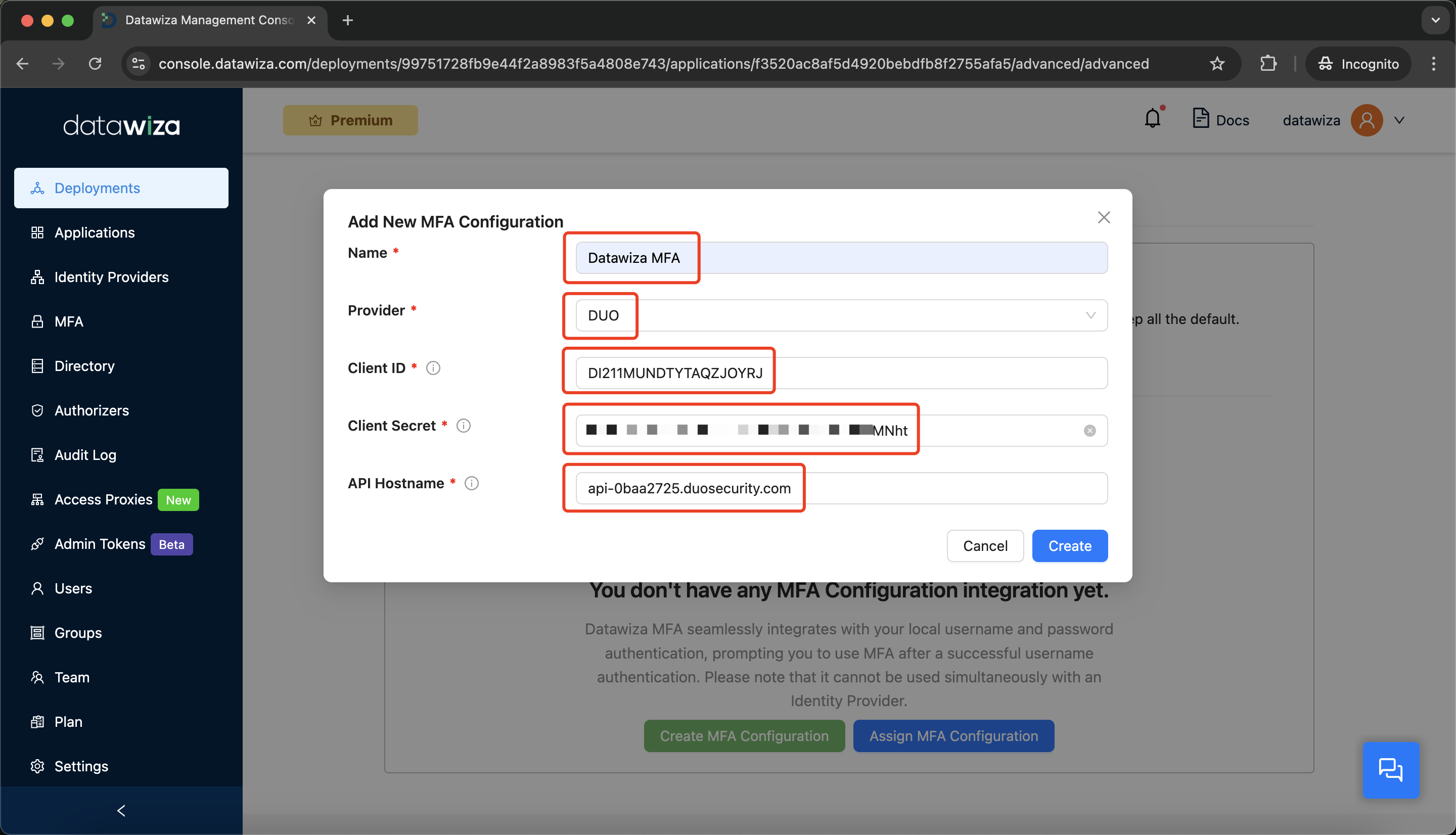

3. Enter a name and select DUO as the provider, enter the Client ID, Client secret， and API hostname we noted down in previous step.

Step 6: Generate Provisioning Keys

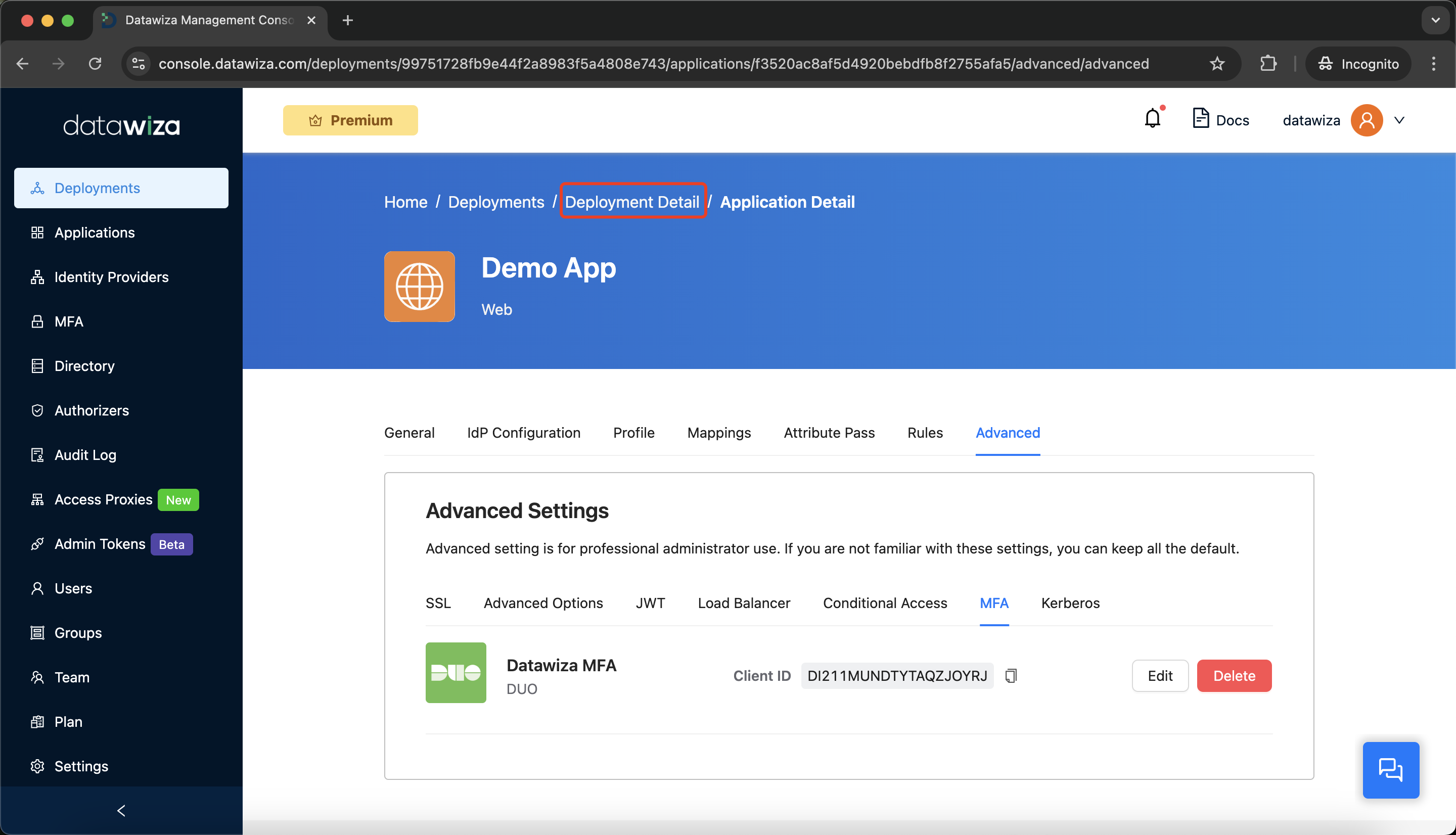

1. Click on Deployment Detail.

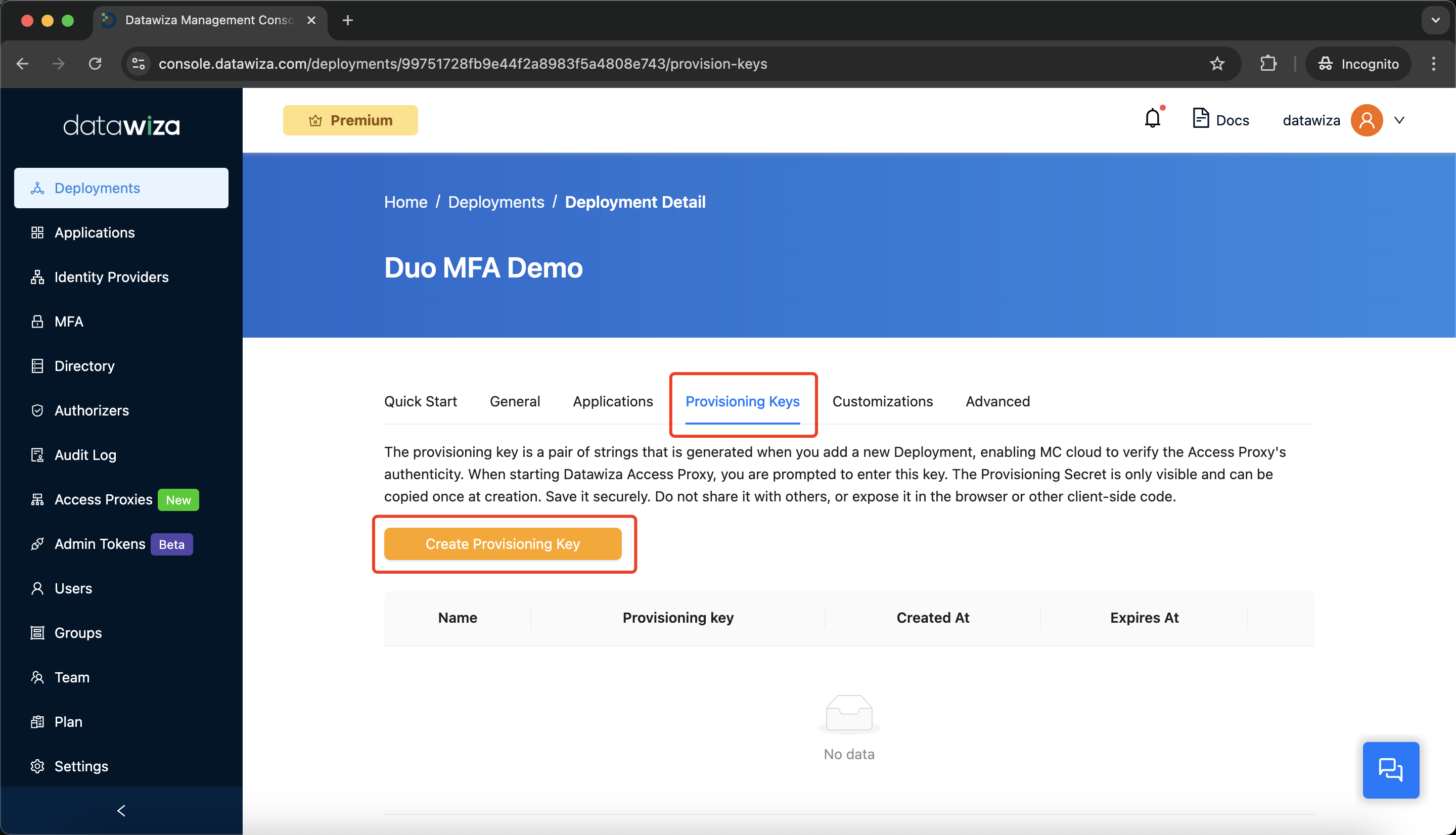

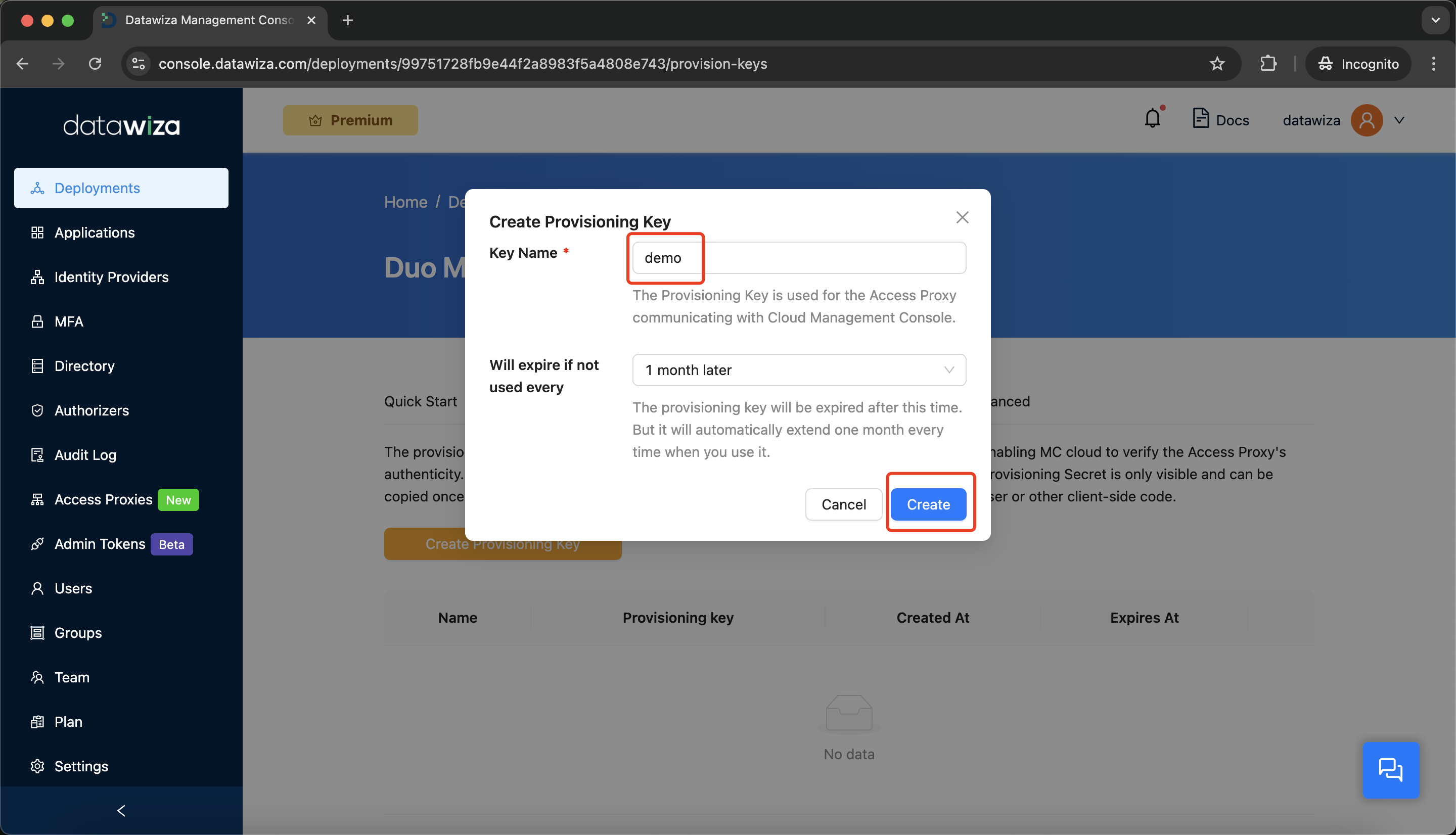

2. Select the Provisioning Keys tab, then click Create Provisioning Key.

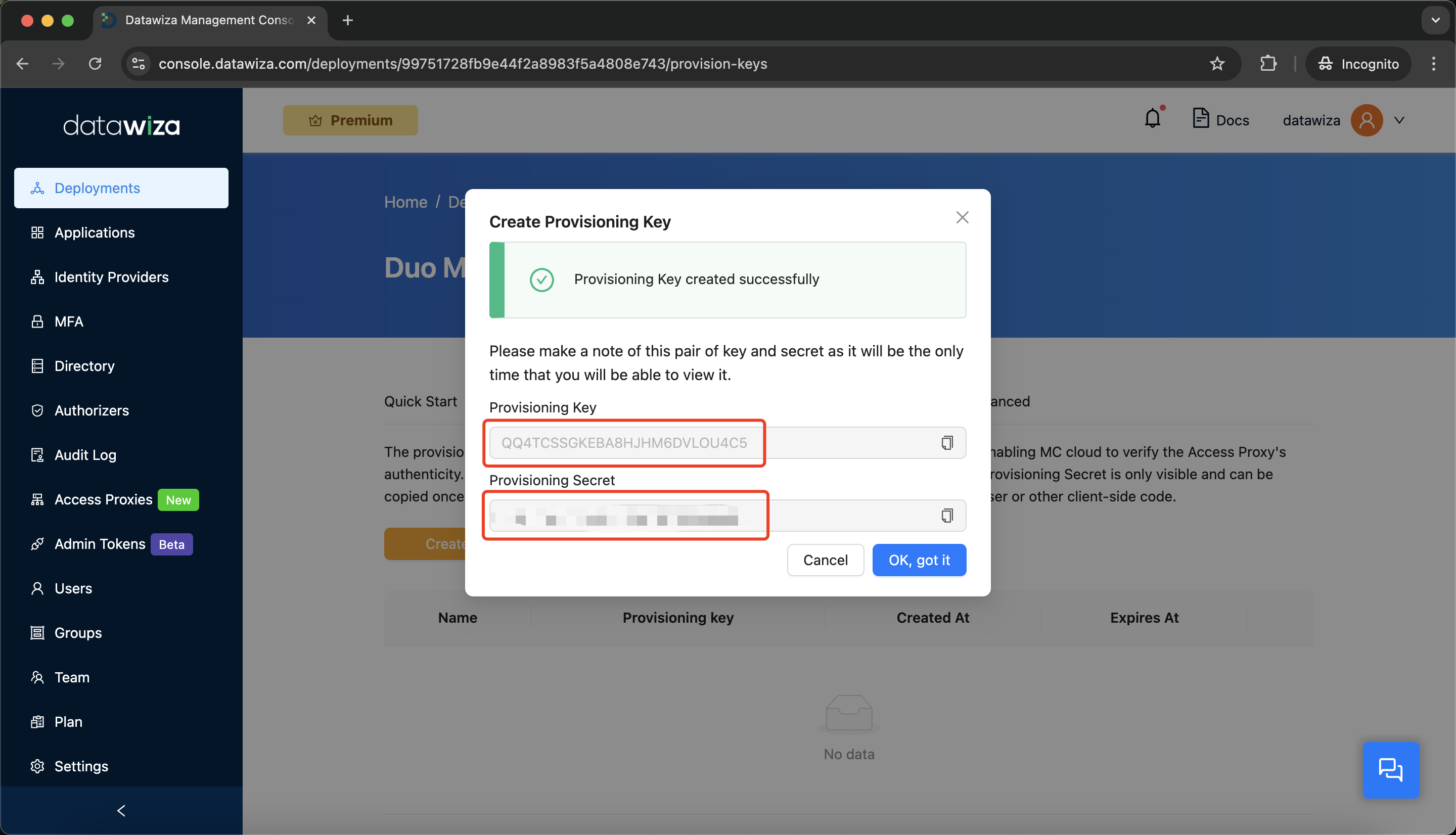

3. Enter a key name and click Create.

4. Save the PROVISIONING_KEY and PROVISIONING_SECRET. You'll use these in your deployment.

Step 7: Run the Datawiza Access Proxy (DAP)

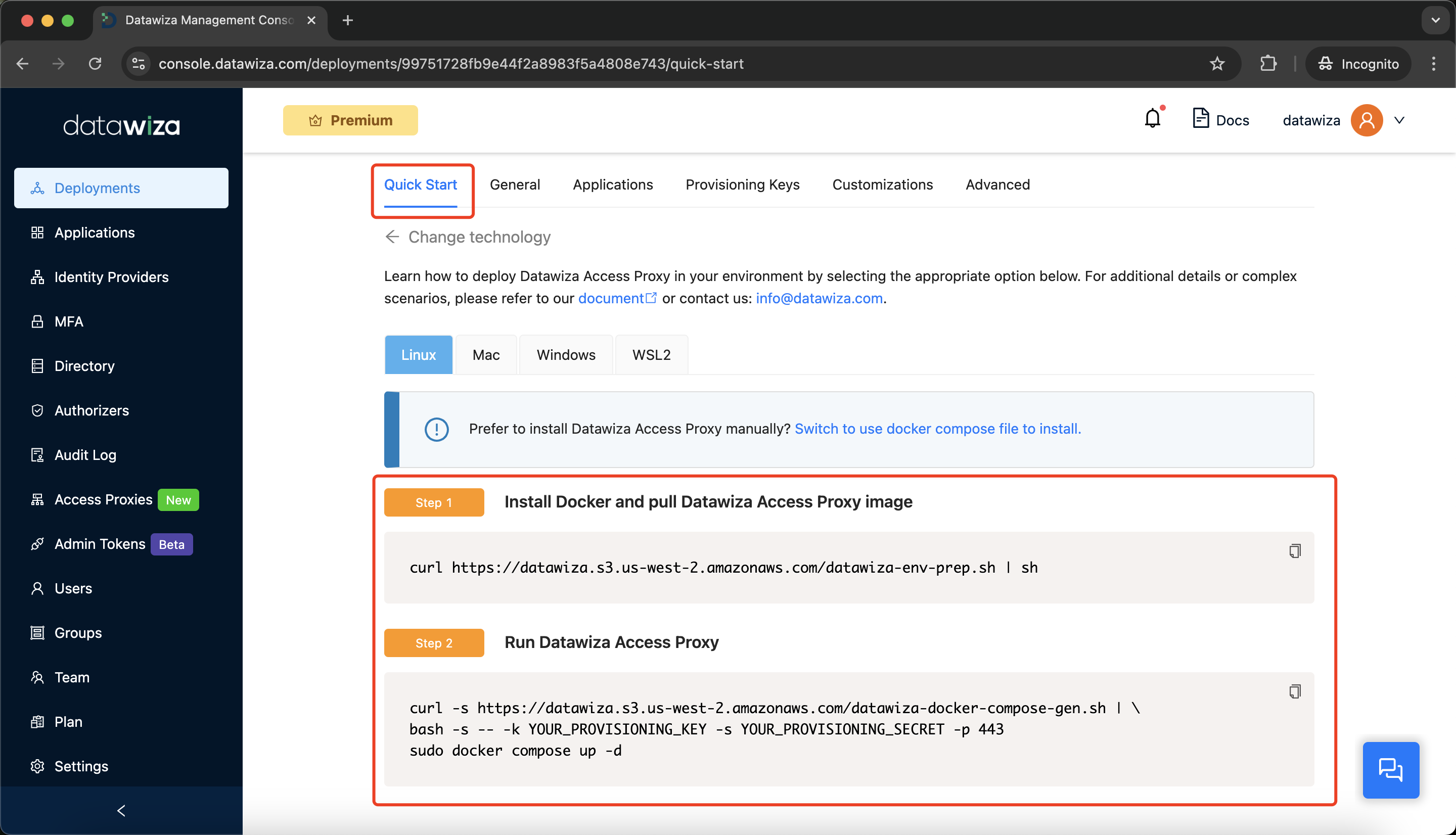

1. Go to the Quick Start tab.
2. Follow Step 1 to install Docker and pull the DAP image.
3. Follow Step 2 to generate a docker-compose.yaml using your provisioning keys and start the DAP container.

Part III: Verify MFA (2FA) for Oracle EBS

1. Open a browser and visit: https://ebs.datawiza.net/

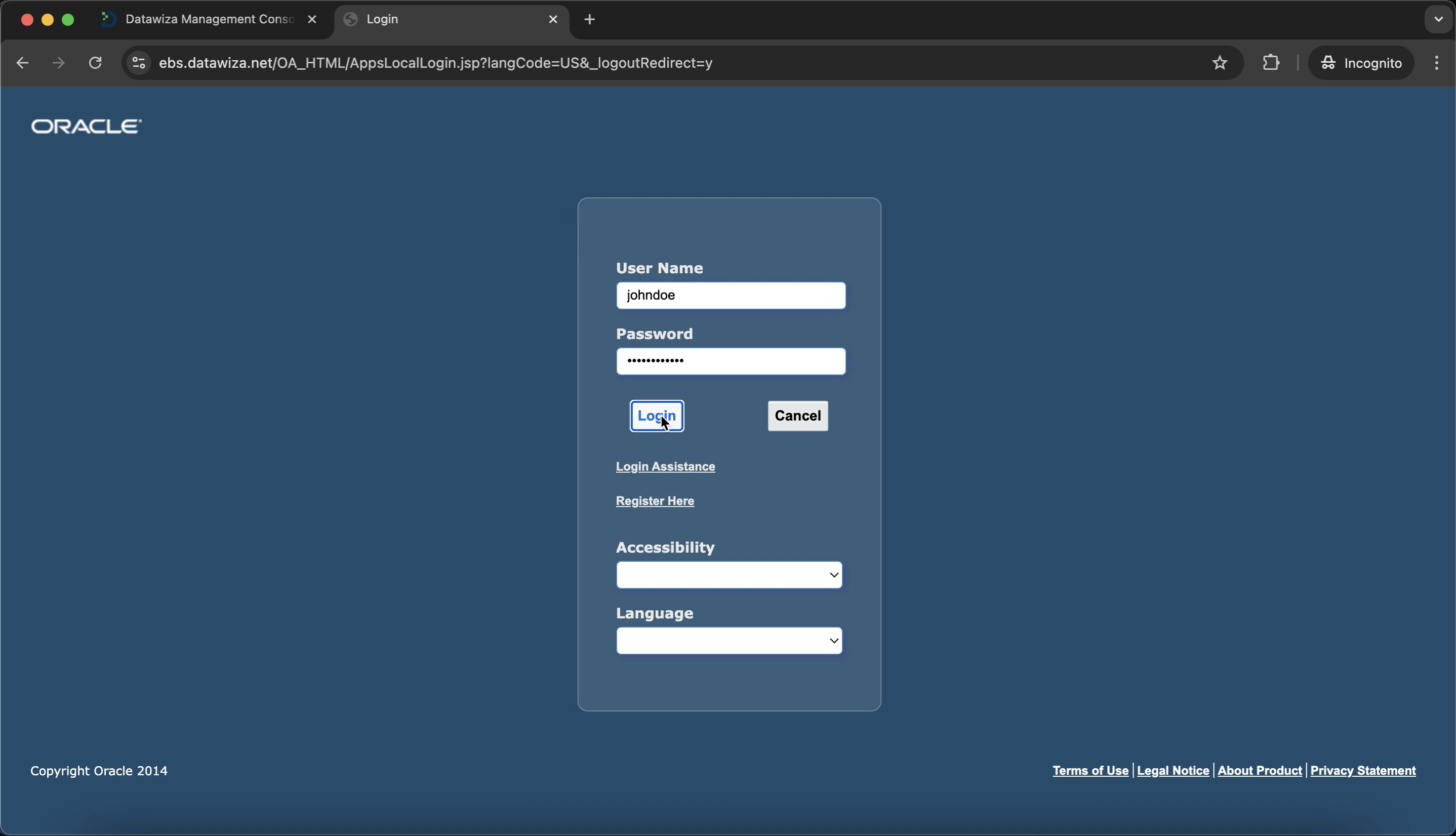

2. You'll be redirected to the EBS login page.

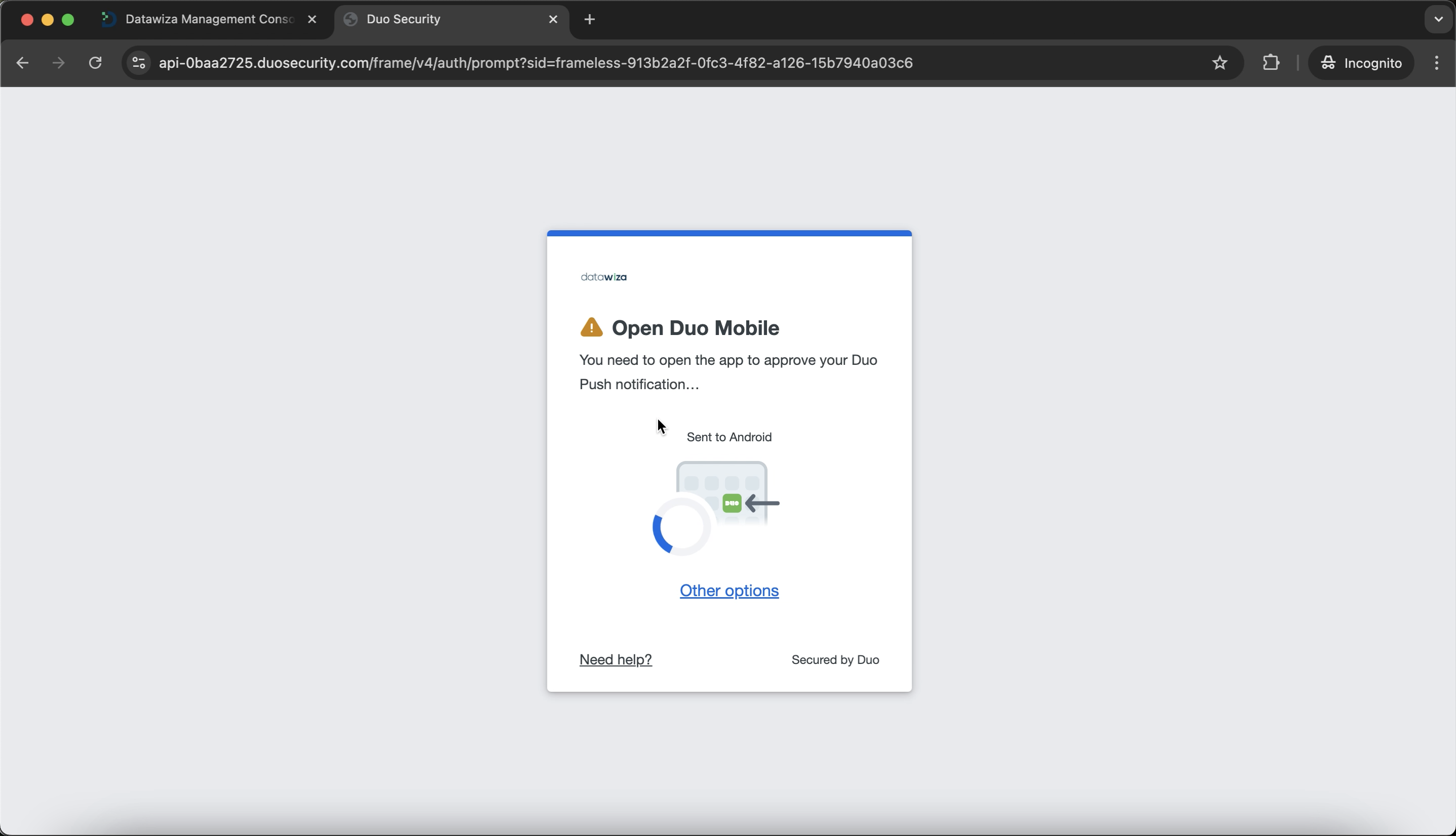

3. After successful login, you'll be redirected to Duo MFA challenge page.

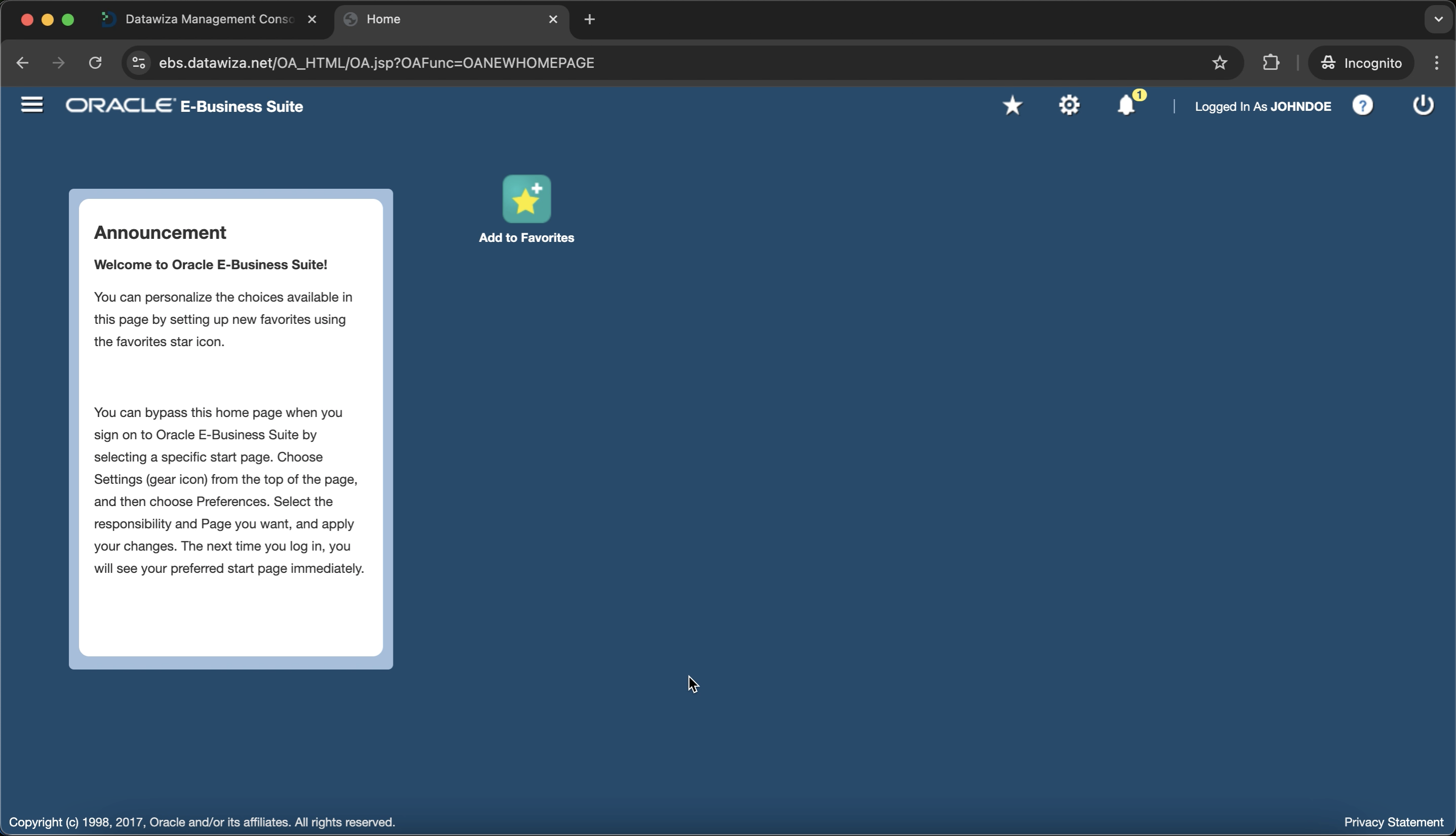

4. After the user successfully completes MFA, they should be able to access Oracle EBS as usual.
